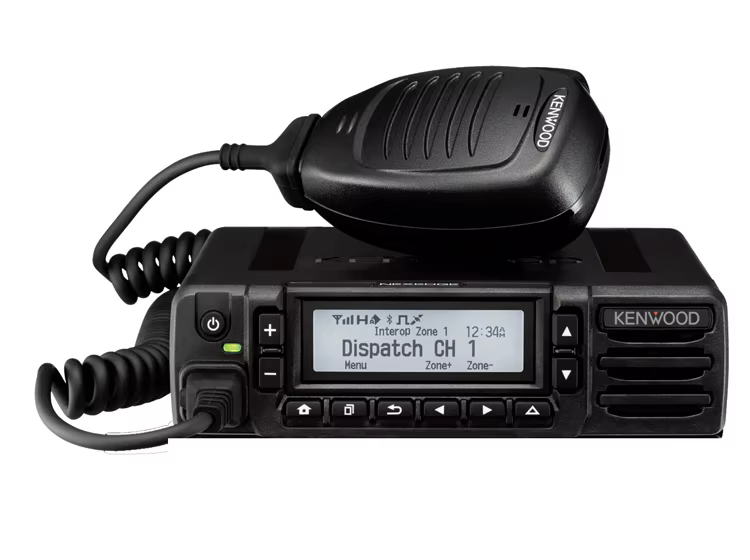

Kenwood VHF Nx-3720 UHF Nx-3820 DMR Nxdn 50W VHF Base Radio Digital Base Mobile Radio Vehicle Mounted for Kenwood Car Walkie Talkie
Features:
- NXDN Type-C & Gen2 Trunked
- NXDN Conventional
- 6.25 & 12.5 kHz Channels
- All Group Call
- Over-the-Air Alias (OAA)
- Over-the-Air Programming (OTAP)
- Complies with ETSI DMR Tier II standards
- Two-slot TDMA in 12.5 kHz channels
- Call Interruption
- Dual-slot Direct Mode
- ARC4 Encryption
| GENERAL | Nx-3720HG | Nx-3820HG |
| Frequency Range | 136-174MHz | Type 1:450-520 MHz Type 2: 400-470 MHz |
| Max.Channels per Radio | Up to 1000 channels with option | |
| Number of Channels | 512 | |
| Number of Zones | 128 | |
| Analog Channel Spacing Digital |
12.5/15/25*130*kHz | 12.5/25*kHz |
| 6.25/12.5kHz | 6.25/12.5kHz | |
| perating Voltage | 13.6VDC+/-15% | |
| Standby current Drain RX Tx |
0.45A | |
| 2.3A | ||
| 12A | ||
| perating Temperature | -22°Fto +140°F(-30Cto+60°C) | |
| Frequency Stability | ±1.0 ppm (-22°Fto +140°F) | |
| Antenna lmpedance | 50 Ohms | |
| Dimensions (WxHxD) Radio with Control Head *Projections not included |
6.30 x 1.69 x6.30 in (160 x43x 160 mm) | |
