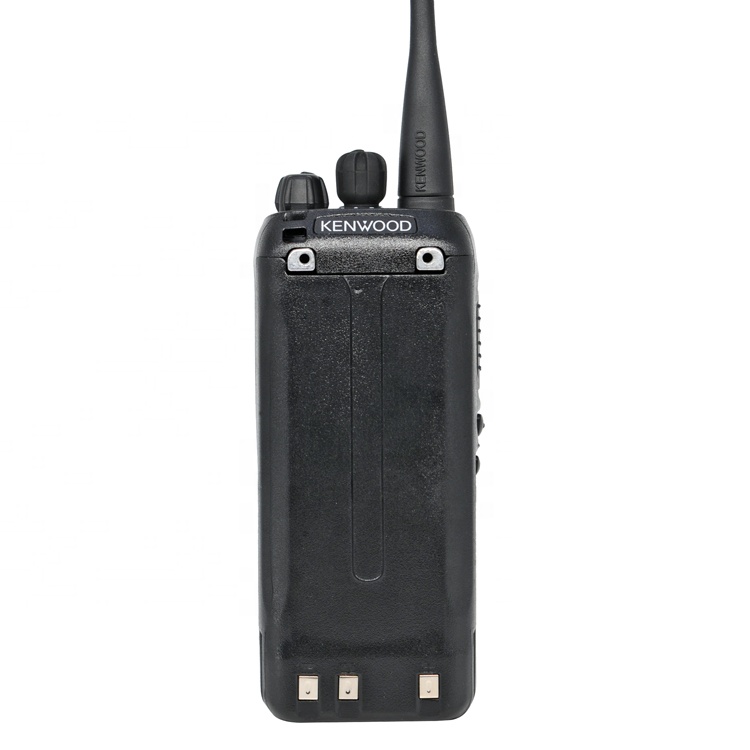

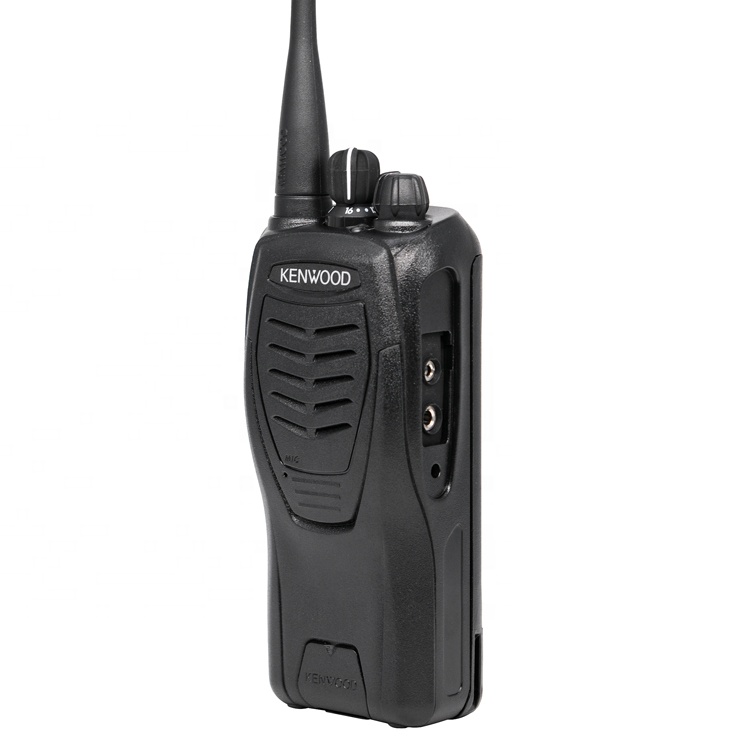

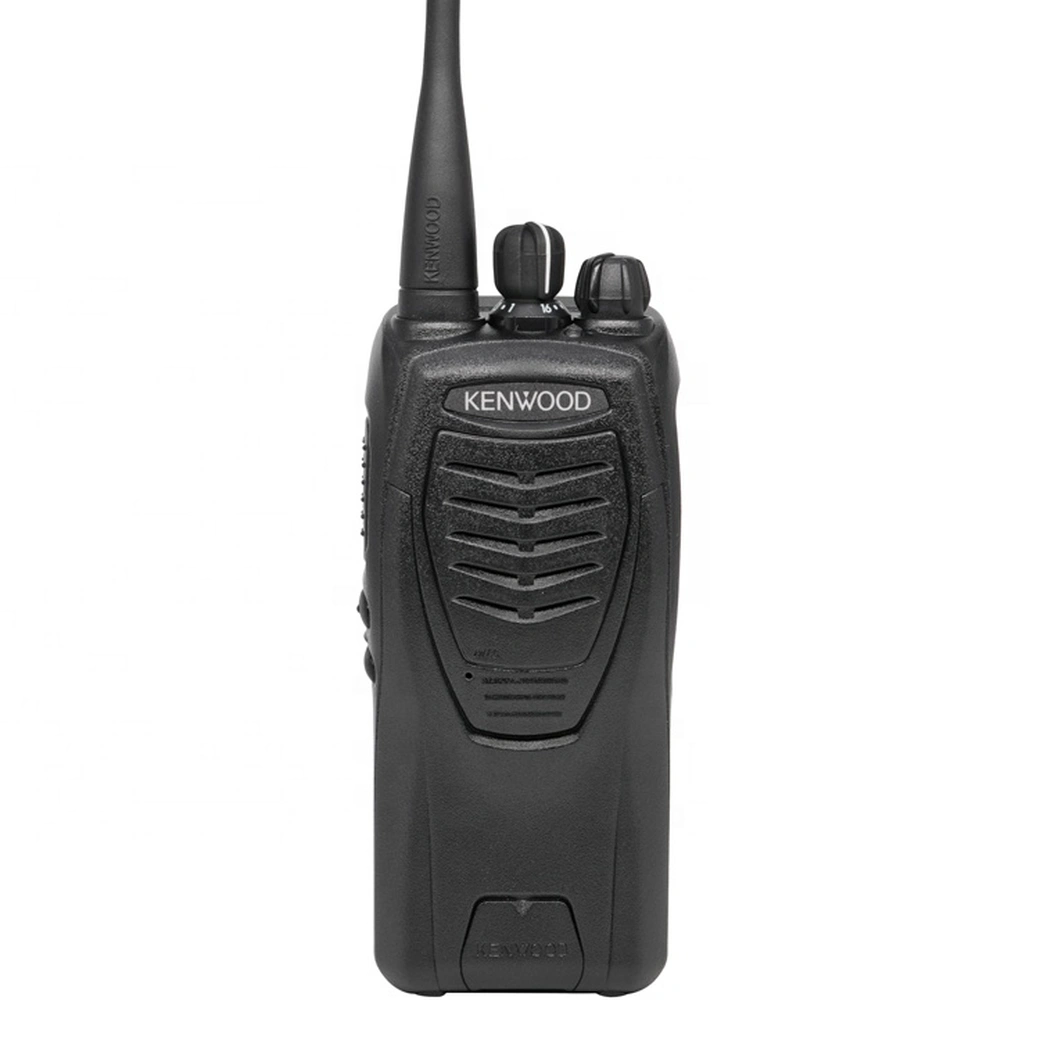

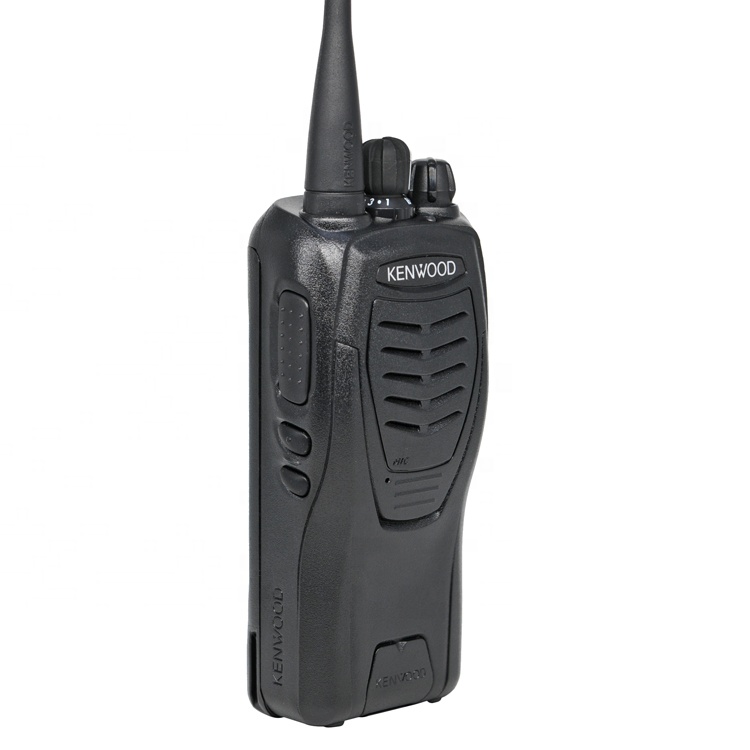

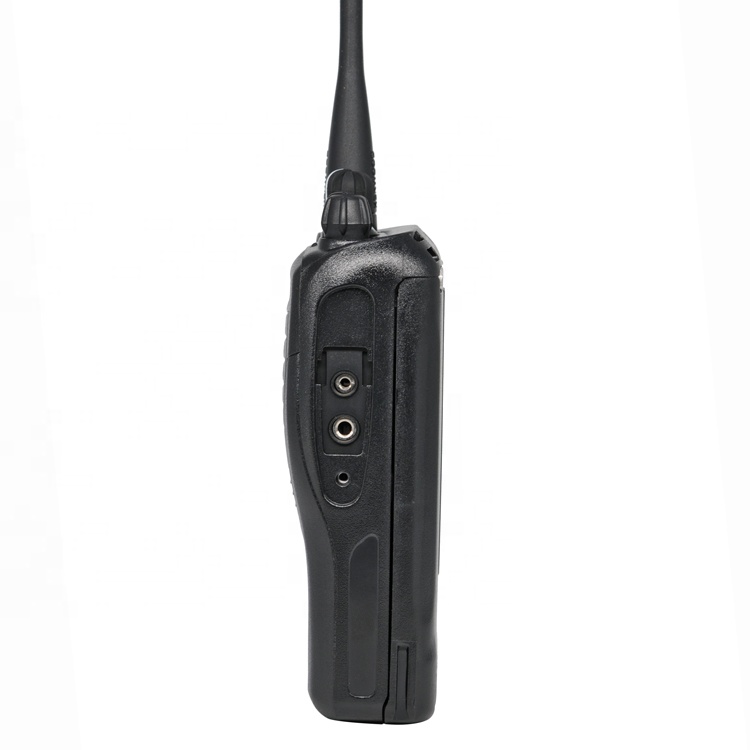

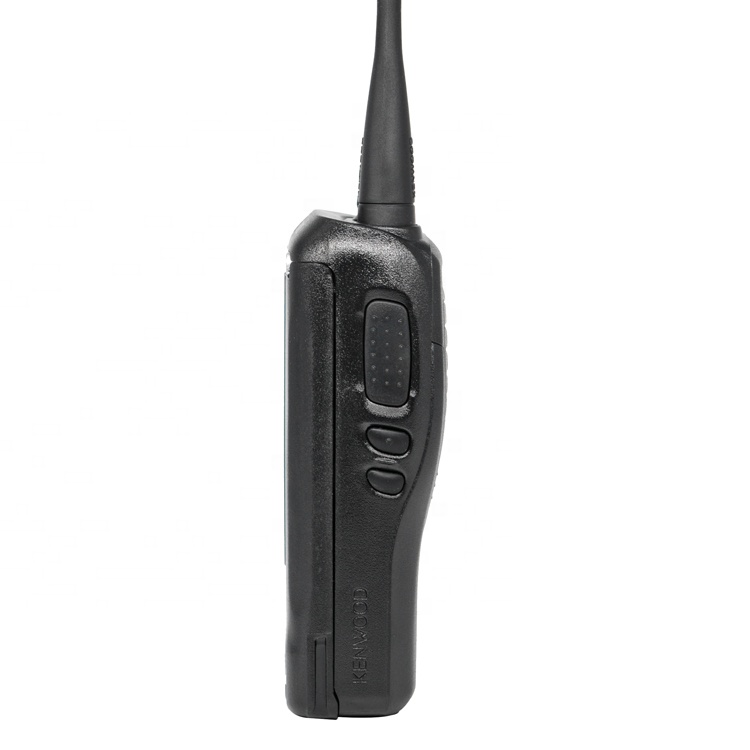

Kenwood TK‑3207GD UHF FM Professional Two‑Way Radio Handheld Walkie Talkie
The Kenwood TK‑3207GD is a compact UHF digital two‑way radio designed for professional communication. Supporting both NXDN digital and analog modes, it offers clear audio, stable performance, and easy system migration for security, hospitality, retail, and industrial applications.
Built with Kenwood’s renowned audio technology and durability standards, this radio delivers loud, clear voice communication even in noisy working environments.
Kenwood TK-3207GD dmr walkie talkie adopts advanced digital signal processing technology, which can effectively reduce background noise and other interference signals, ensuring stable and reliable communication quality, and is very suitable for use in complex environments. At the same time, the walkie talkie has strong signal penetration ability and long-distance communication performance, which can communicate in a wider area, and the signal is stable and not easily obstructed by terrain and buildings. This is very suitable for application scenarios that require remote communication.
| GENERAL SPECIFICATIONS | |
| Band
|
UHF: 400-470MHz |
| Power Output | ≤5W |
| Channel Spacing | Analog: 12.5/25KHz
Digital:12.5KHz |
| Channel Capacity | 32 |
| Dimensions(HXWXD) | 122 X 54 X33 mm |
| Weight(Radio + KNB-45L) | 280g |
| Oprerating temperature | -30℃ – 60℃ |
| Power Supply(Nominal) | 7.4V |
| TRANSMITTER SPECIFICATIONS | |
| Digital Modulation | 7K60FXD, 7K60FXE |
| Modulation limit | 2.5KHz |
| Modulation noise | -40dB |
| Spurious emission | -36dB≤1GHz
-30dB>1GHz |
| Adjacent channel power | -60dB |
| Modulation characteristics | +1dB, -3dB |
| RECEIVER SPECIFICATIONS | |
| Digital Sensitivity | 0.2 uV |
| Frequency stability | ±2.5ppm |
| Intermodulation | 55 dB |
| Adjacent Channel Selectivity | 60 dB |
| Spurious Rejection | 12 dB |
| AUDIO SPECIFICATIONS | |
| Rated Audio | 1 W |
| Audio Distortion at Rated Audio | 5% |
| Conducted Spurious Emissions | -57 dBm |
