Long Range Encrypted Kirisun DP405 DMR Digital Two Way Radio Kirisun walkie talkie with voice encryption price



VHF: 136-174 MHz;

350: 350-400 MHz

UHF: 400-470 MHz

Features

Digital Standard and Analog Compatibility

The Kirisun DP405 meets the DMR digital standard and can work in both digital and analog modes. This is really helpful for teams or companies that are moving from analog to digital systems. They don’t need to change all their equipment at once. The Kirisun DP405 can work with both types of systems, which makes the transition easier and more flexible.

Self-defined Voice Annunciation

The user can directly download voice annunciation of different languages and also zone alert tone to the radio through the PC software based on the actual needs. After powering on, the voice annunciation will automatically switch to the local language.

Improved Call Capacity with DMO 2-slot

The feature of DMO 2-slot realizes two group calls on the same frequency at the same time in Direct Mode. The call capacity can be increased without having to apply for additional frequency, thus greatly helping the user to save the cost.

Smooth Transition and Compatibility with Both Analog and Digital Mode

It supports both digital and analog mode, so the user can go on using the existing analog radio to talk to DP405.

Longer Operation Duration

TDMA technology and power-saving feature enable the battery to work longer. DP405 with standard 2000mAH battery can perform for 16 hours to meet the user’s demands on longer operation.It can work continuously for up to 18 hours and has a standby time of up to 100 hours. This means that users don’t need to worry about frequent recharging during long work periods. The battery life of the Kirisun DP405 can meet the basic needs of most users in daily work.

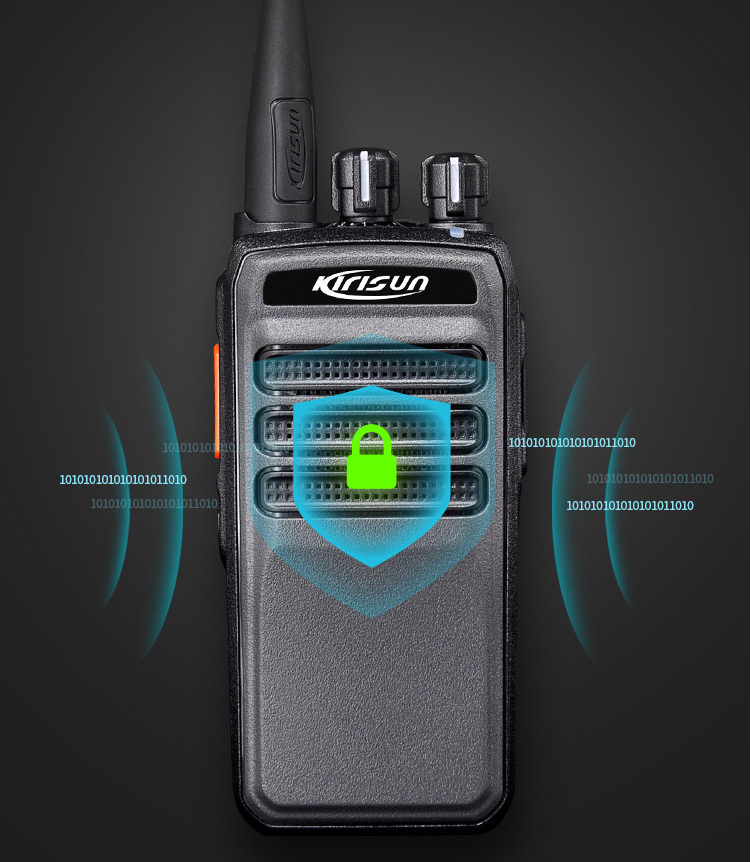

ARC 40-bit Encryption Guarantees Safe Communication

It supports ARC 40-bit encryption, which guarantees communication safety and prevent from being eavesdropped.

Practical Business Functions

The Kirisun DP405 includes several business functions that can help manage communication more effectively. For example, it has radio – check, remote monitoring, and remote activation/deactivation capabilities. These features allow administrators to check the status of the Kirisun DP405 units, monitor communication activities, and manage access rights. These functions are quite helpful for businesses to maintain the efficient operation of their communication networks.

Functions

• Voice broadcast
• Whisper function
• High and low power transmission options
• Monitoring function
• TOT transmission time limit protection
• Single work
• CTCSS/DCS codec
• Offline function
• Automatic power saving, low battery alarm
• Read and write frequency password setting
• No transmission when busy
• Computer programming, support online upgrade

Accessories

Power adapter	KB-760B Li-ion battery(2000mAh)	Antenna
Lanyard	Manual	Charging cable

Specifications

General SpecificationsFrequency BandsChannel CapacityChannel SpacingBattery (Standard)Battery LifeOperating TemperatureStorage TemperatureDimensions (W × H × D)WeightReceiving PartFrequency StabilityAnalog SensitivityDigital SensitivityIntermodulationAdjacent Channel SelectivityCo-channel SuppressionBlockingRated Audio PowerAudio DistortionSignal-to-Noise Ratio (Audio)Conducted Spurious EmissionAntenna ImpedanceTransmitting PartFrequency StabilityPower OutputFM Modulation Format4FSK Digital ModulationDigital CodecDigital ProtocolModulation SensitivityConducted/Radiated SpuriousSignal-to-Noise (Audio)Adjacent Channel Power (Analog)4FSK Modulation PrecisionFrequency Deviation LimitAudio DistortionAudio Frequency Response

VHF: 136-174 MHz; 350: 350-400 MHz UHF: 400-470 MHz

256 channels (16 zones × 16 channels)

Analog: 12.5KHz / 20KHz / 25KHz; Digital: 12.5KHz

DC 7.4V ±20%, 2000mAh Lithium-ion battery

Analog: ~18 hours; Digital: ~20 hours

-30°C to +60°C

-40°C to +85°C

34.5mm × 60mm × 130mm (excluding antenna)

≤280 grams (including battery, belt clip, antenna)

±0.5 ppm

≤ -121 dBm @ 12dB SINAD

≤ -119 dBm @ 5% BER

-65 @ dB 12.5/20/25 kHz

Analog: ≥60 dB @ 12.5kHz; ≥70 dB @ 25kHz; Digital: ≥60 dB @ 12.5kHz

0 to -12 dB @ 12.5/20/25 kHz

84 dB

>1W

≤ 3%

≥ -40 dB @ 12.5 kHz; > -45 dB @ 25 kHz

<-57 dBm

50 Ω

±0.5 ppm

VHF: 1W / 5W; UHF: 1W / 4W

11K CCD (F3E) @ 12.5kHz; 16K CCD @ 25kHz

7.6K FXD (data); 7.6K FXW (data + voice)

AMBE++

ETSI-TS102 361-1, -2, -3

8+2 mV

-36 dBm <1 GHz; -30 dBm > 1 GHz

≥ -40 dB @ 12.5 kHz; ≥ -45 dB @ 25 kHz

≥60 dB @ 12.5 kHz; ≥70 dB @ 25 kHz

≤ 3%

≤ +2.5 kHz @ 12.5 kHz

≤ 3%

300 Hz – 3 kHz, ±1/-3 dB
