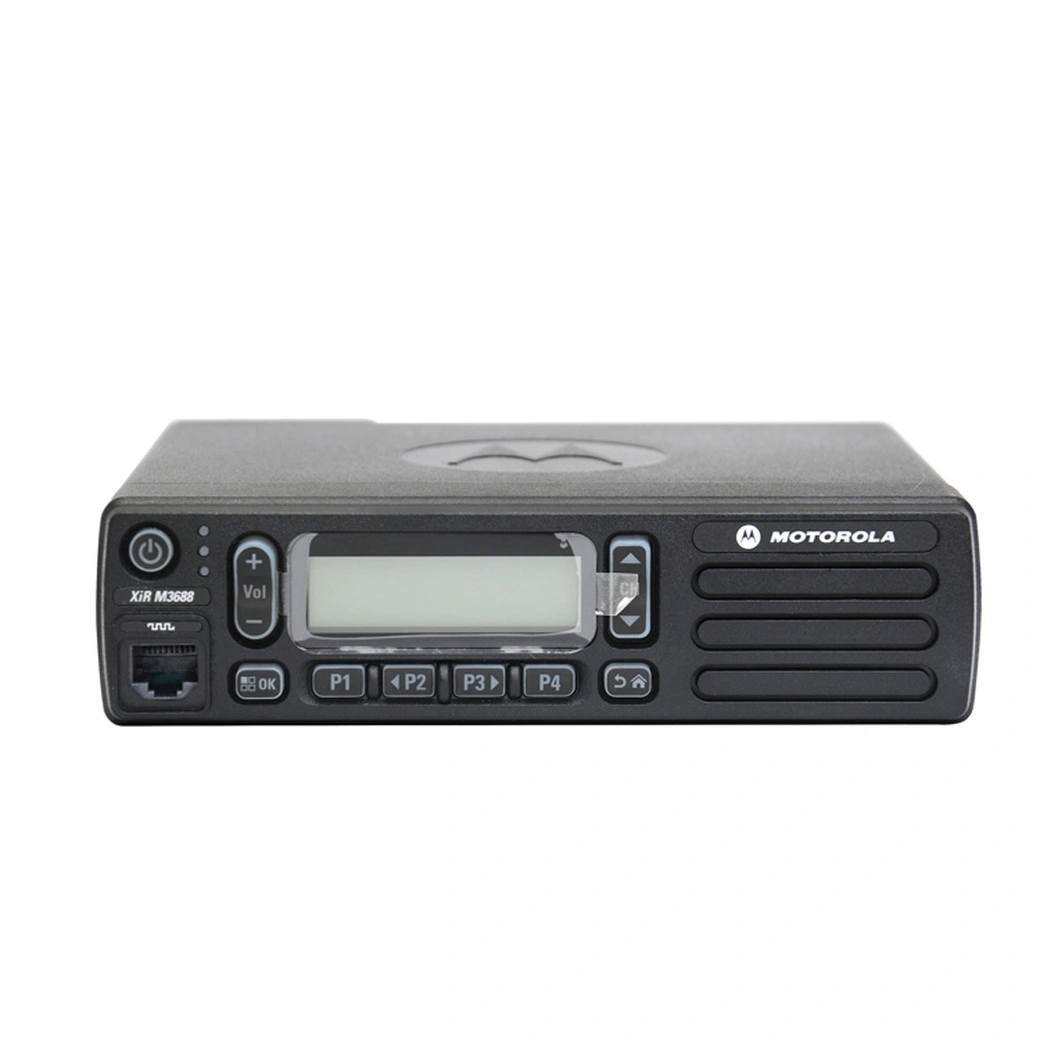

Motorola XiR M3688 Analog Mobile Radio | VHF/UHF 25W/45W | 16CH | Fleet Dispatch | OEM Supply
In-Depth Overview & Procurement for B2B Buyers (Analog Mobile Radio)
Product Information
The DMR digital characteristics of Motorola XiR M3688 mobile radio enable high-speed and efficient data transmission, better adapting to people’s ever-changing communication needs. In the information age, the speed and quality of data transmission are crucial for various business activities of enterprises and institutions. Compared with ordinary voice transmission, Motorola XiR M3688 mobile radio can simultaneously transmit multiple types of information such as voice and data, making information transmission more efficient and convenient.
The DMR digital long-distance transmission of XiR M3688 also supports security mechanisms such as encryption and identity verification. These security measures not only effectively prevent communication information from being stolen or tampered with, but also improve the security level of trade secrets and national confidential information.
The Motorola XiR M3688 mobile radio also has wide applicability and is easy to upgrade and expand, thus better meeting customer needs. Its wide applicability can help consumers achieve information transmission in different scenarios, such as efficient and stable information transmission in different on-site environments such as factories, schools, gas stations, fire stations, etc.
The Motorola XiR M3688 mobile radio supports online upgrades, expansions, and changes in communication solutions, which can be optimized at any time as customer needs change, thereby better meeting market demands.
Function
- Analog/digital dual mode
- Voice communication
- Prefabricated text messages
- Simultaneous call between two time slots in direct mode
- Forced transmission interrupt (decoding only)
- Voice prompts
- Alphanumeric display
- DMR standard
- IP54 rating
Accessories

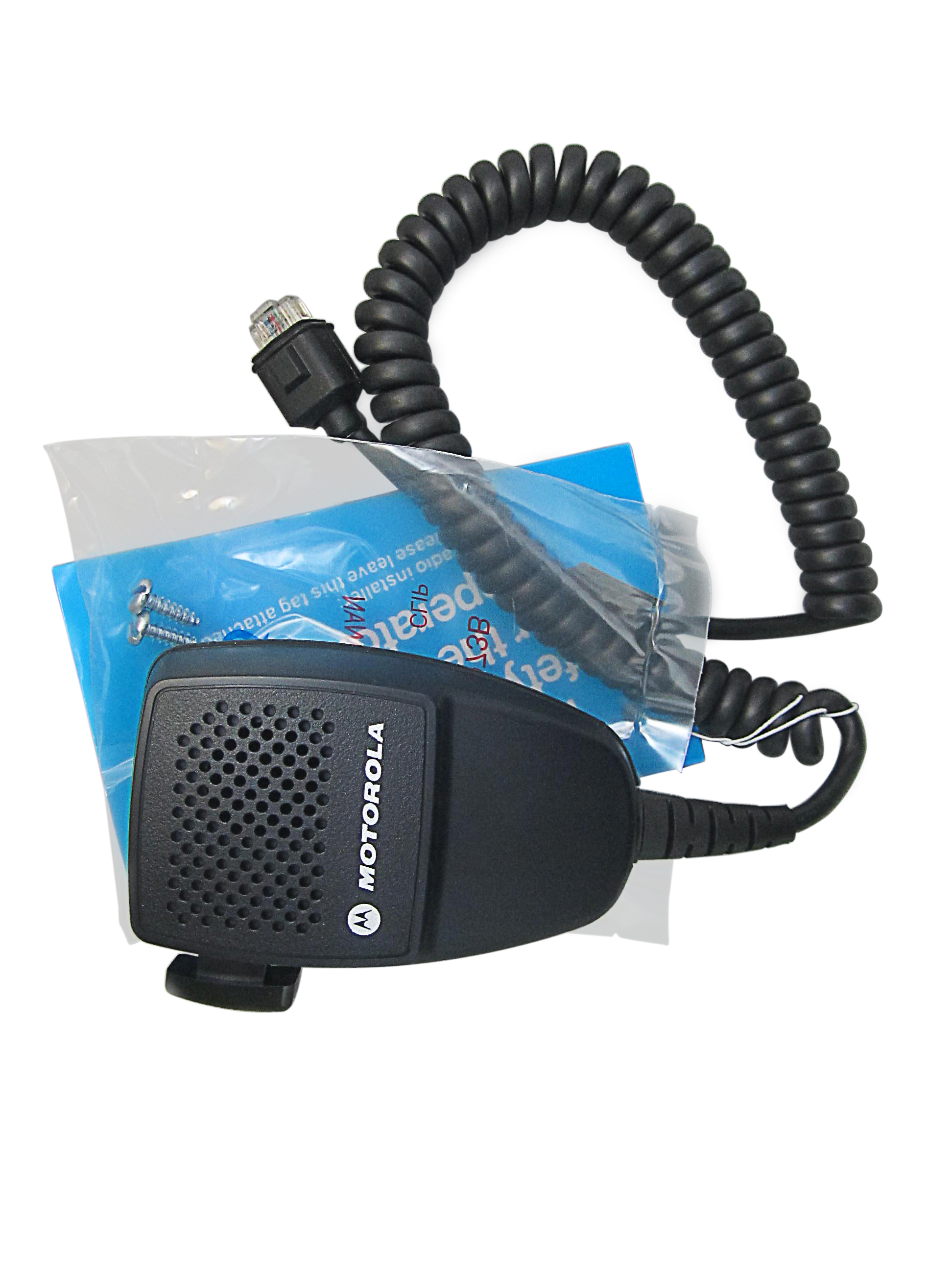

- microphone
- charger
- Bracket
- Components
Specifications
| General specifications | |
| Channel Capacity | 160 |
| Output Power | 1-25W, 25-45W (VHF)
1-25W, 25-40W (UHF) |
| Dimensions (H x W x L) | 1.7×6.7×53 inches (44 169x 134 mm) |
| Weight | 2.9 lbs (1.3 kg) |
| Standby | 0.81 A |
| Receive (Rated Audio) | 2 A |
| Transmit | 12A |
| FCC Description | AZ492FT5862 |
| Transmitter | |
| Frequencies | 136-174 MHz 403-470 MHz |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm |
| Low Power Output | 1-25 W |
| High Power Output | 25-45 W |
| Modulation Limiting | ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz* |
| FM Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz* |
| Conducted/ Radiated Emission | -36 dBm < 1 GHz /-30dBm >1GH |
| Adjacent Channel Power | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz* |
| Audio Response | TIA603D |
| FM Modulation | 12.5 kHz: 11K0F3E / 25 kHz*: 16K0F3E |
| 4FSK Digital Modulation | 12.5 kHz Data Only: 7K60F1D & 7K60FXD |
| Digital Vocoder Type | AMBE+2™ |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 |
| Receiver | |
| Frequencies | V:136-174 MHz U:403-470 MHz |
| Channel Spacing | 12.5 kHz / 25 kHz* |
| Intermodulation Rejection | 60 dB |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm |
| Analog Sensitivity (12dB SINAD) | 0.3 uV, 0.22 uV (typical) |
| Digital Sensitivity | 5% BER @ 0.25 uV (0.19uV typical) |
| Intermodulation (TIA603D) | 78 dB |
| Adjacent Channel Selectivity | 50 dB @ 12.5 kHz 80 dB @ 25 kHz* |
| Spurious Rejection | 80 dB |
| Rated Audio | 3 W (Internal), 7.5 W (External – 8 ohms), 13 W (External – 4 ohms) |
| Audio Distortion @ Rated Audio | 3% (typical) |
| Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz* |
| Audio Response | TIA603D |
| Conducted Spurious Emission (TIA603D) | -57 dBm |
