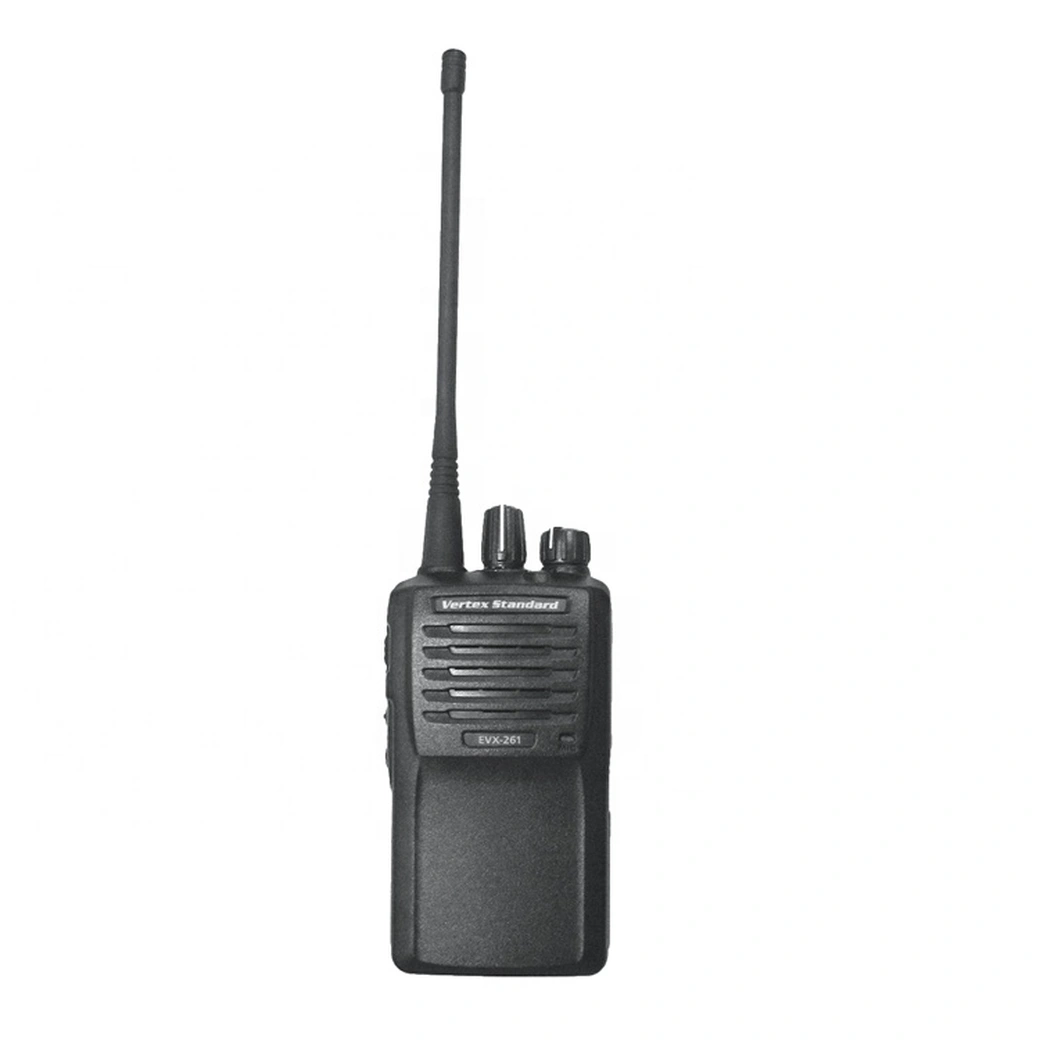

Vertex EVX‑261 Digital Two‑Way Radio | Compact VHF/UHF DMR Walkie Talkie
The Vertex EVX‑261 is a reliable digital two‑way radio designed for professional business communication. Compact, durable, and supporting both analog and digital modes, it is ideal for security, hospitality, retail, and industrial environments.
Vertex EVX-261 is a high-end walkie talkie based on DMR digital technology. It has demonstrated excellent performance and characteristics in terms of audio quality, frequency range, and appearance design. This walkie talkie is suitable for various work situations and provides users with stable and reliable communication functions, which is highly recommended and useful.
The EVX-261 walkie talkie not only retains the traditional characteristics of walkie talkie confidentiality, stability, and practicality, but also integrates more advanced digital communication technology, making it a cost-effective professional communication device. The adoption of eVerge technology enables it to avoid communication interference and fluctuations in terms of speech clarity and communication stability, and to maintain stable communication even in harsh environments. The superior characteristics of the EVX-261 walkie talkie will enable users to achieve a faster, more efficient, and convenient portable communication experience in various applications.
Better audio quality
Due to the use of DMR digital technology, the voice transmission quality of Vertex EVX-261 is excellent. This digital technology can achieve speech transmission compression and decoding, improve speech quality while also reducing transmission bandwidth. Therefore, when using this walkie talkie for communication, better speech clarity and listening performance can be achieved.
Wide frequency range
The frequency range of the Vertex EVX-261 walkie talkie is very wide, covering two different frequency bands, VHF and UHF, which can meet the communication needs of users in different occasions. At the same time, this walkie talkie also has 256 prefabricated channels, allowing users to easily choose the frequency they need for communication.
High end drop resistant
The Vertex EVX-261 material is also very high-end and durable, ensuring the stability and durability of the equipment even in harsh environments.

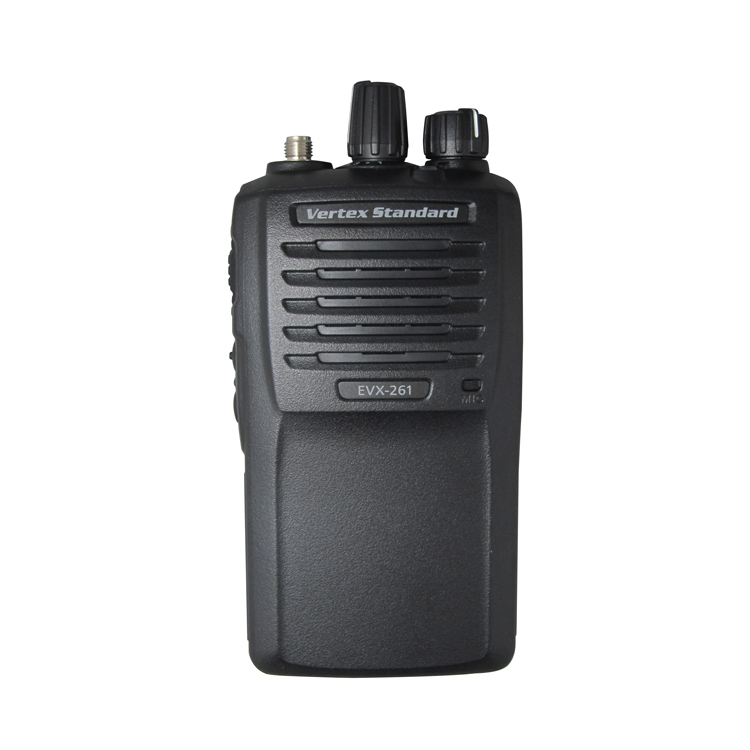

16 channels UHF VHF two way radio digital vertex dmr walkie talkie set EVX-261
Main Feature










| General Specifications | |
| Frequency Range | VHF: 136-174mhz
UHF: 403-470mhz |
| Channel Capacity | 16 |
| Frequency Spacing | 12.5/20/25 KHz |
| Power supply | 7.4V |
| battery capacity | 2000mAh Li-ion battery |
| Frequency Stability | ±0.5ppm |
| Operating Temperature Range | -30 °C to + 60°C |
| Dimension (L×W×H) | 109 x 58 x 32 mm |
| Weight | 330 g |
| Transmitter and receiver | |
| Output power | UHF:1W / 5W VHF: 1W / 4W |
| FM Hum and Noise | 40dB @ 12.5KHz; 45dB @ 25KHz |
| Modulation Limited | ±2.5KHz @ 12.5KHz; ±5.0KHz @ 25KHz |
| Audio Distortion | 3% |
| Conducted / Radiated Emission | -36dBm<1GHz -30dBm >1GHz |
| Adjacent Channel Power | -60 dB @ 12.5 kHz
-70 dB @ 25 kHz |
![]()
![]()
