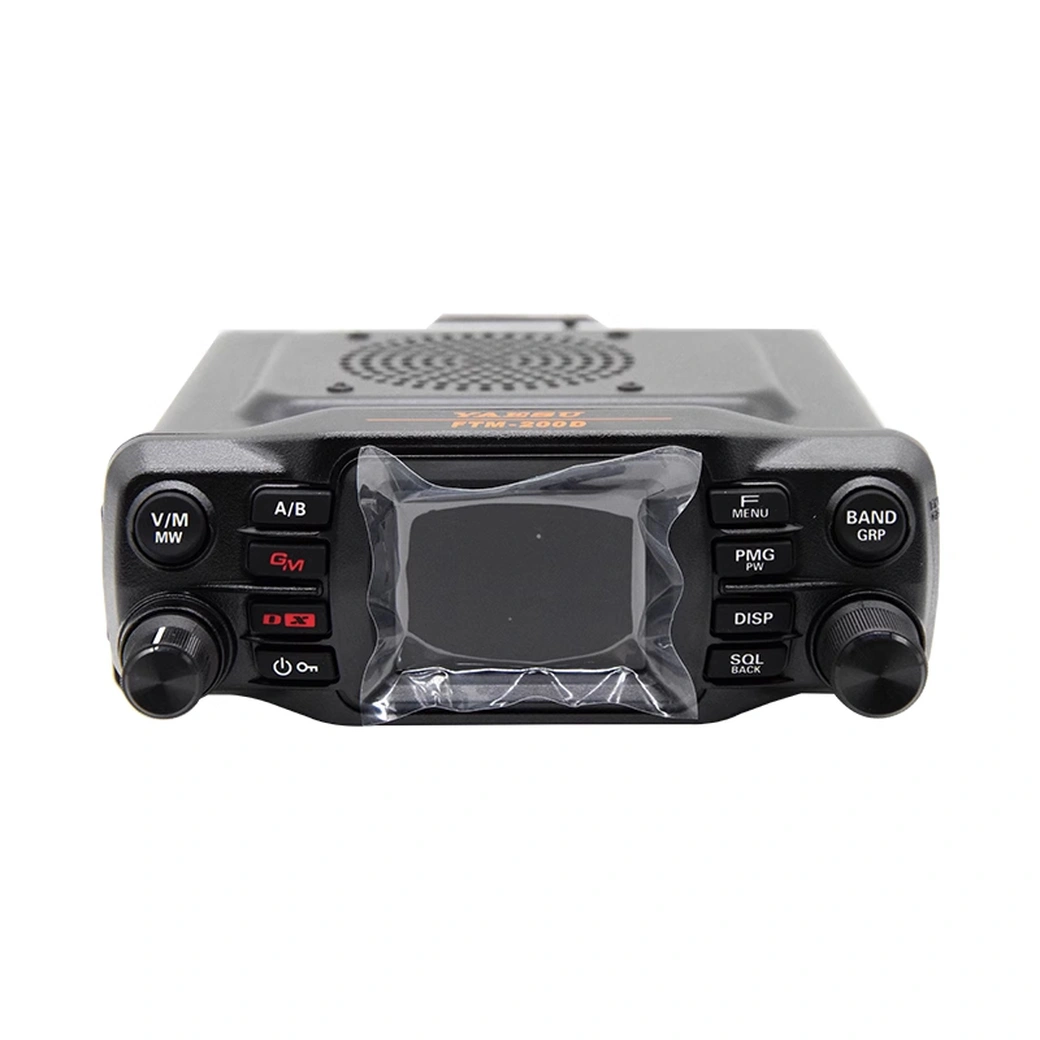

YAESU FTM-200DR C4FM/FM Dual-band Digital Car Radio 50W High Power FTM-100DR Upgrade FTM-200DR Mobile Transceiver
Features
Superior Communication Capabilities
The FTM-200DR supports both C4FM digital and FM analog modes, ensuring compatibility and reliable communication. With 50 W of power output, it delivers impressive performance. It also offers cross – band repeat function, enhancing communication range and effectiveness. The built – in auto – repeater function makes it easy to set up temporary repeaters for events or emergencies. The 200 memory channels with 10 call channels allow quick access to frequently used frequencies. It also has a built – in Bluetooth function for convenient wireless connections.
User – Friendly Operation

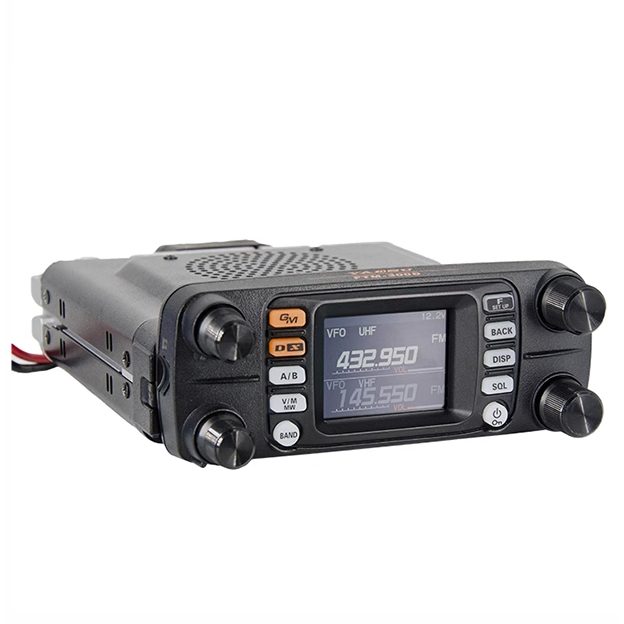

The transceiver features a 3.5 – inch TFT LCD display with a clear and intuitive interface. Its multi – color backlighting improves visibility in various lighting conditions. The simple and precise controls enable quick frequency adjustments and mode switching. The large – font display with multiple color options enhances readability, and the built – in HELP function guides new users.
Advanced Audio and GPS Features
The FTM-200DR is equipped with a high – performance speaker and audio processing technology for exceptional audio quality. The GPS receiver with WAAS/MSAS correction function provides accurate location data. The built – in TNC for packet radio operations supports APRS for location tracking and messaging. Users can also store up to 50 GPS waypoints.
Remote Control and Expandability

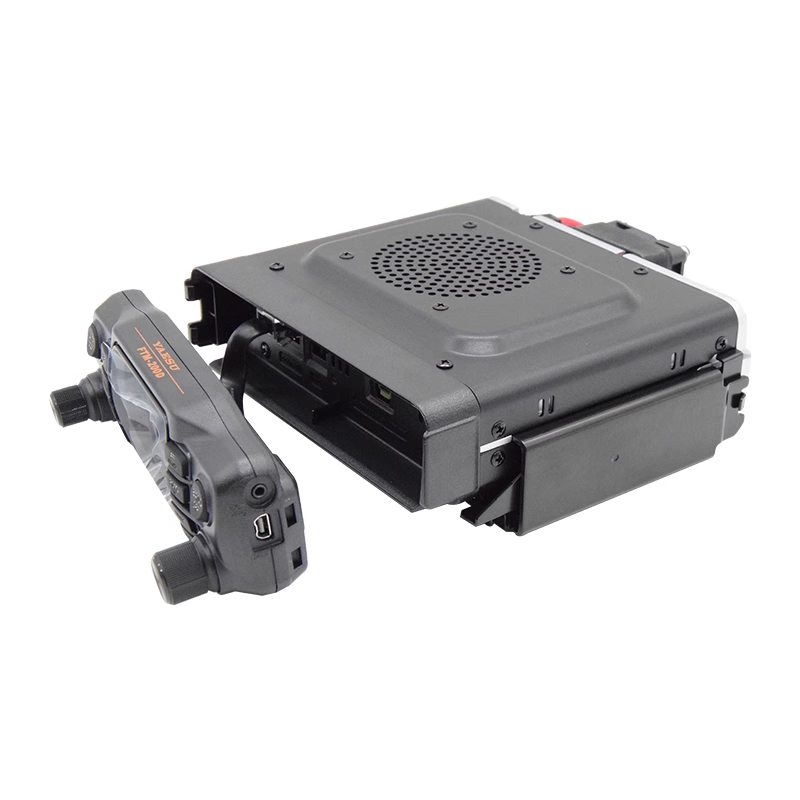

The transceiver comes with a detachable front panel remote control for flexible installation. It supports optional accessories like external speakers and microphones. The front – panel USB port allows easy firmware updates and data transfers. The built – in cloning function simplifies settings replication.
Other functions
- Illuminated keypad
- VOX
- DTMF memory
- DTMF encoding
- Built-in: CTCSS; DCS; and pager (EPCS) encoding/decoding functions, Store frequency difference function
- ARS (Automatic Relay Switching)
- GPS logging function
- GPS status (satellite acquisition status) display
- External GPS device connection

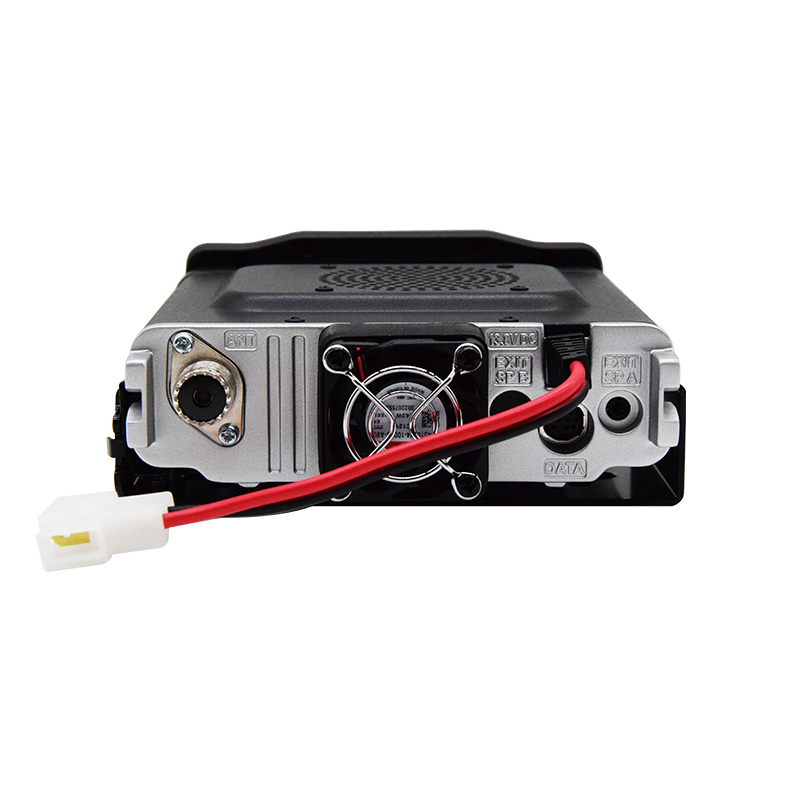

- Multi-function rear panel data interface
- Clock, lap/countdown
- Key lock function
- Auto power off (APO)
- Time-out timer (TOT)
- NOAA weather alert: when service area is available*
Accessories
- 1*Handheld MIC SSM-85D
- 1*Bracket
- 1*MIC stand
- 1*Control cable
- 1*USB cable
- 1*Power cord
- 1*Manual
Specification
| Category | Specification |
|---|---|
| Transmitter | |
| Frequency Range (RX) | 108 – 137 MHz (AIR Band) |
| RF Power Output | 50W / 25W / 5W |
| Circuit Type | Double Conversion Superheterodyne |
| Additional Frequency | 137.174 MHz (144 MHz Amateur / VHF Band) |
| Modulation Types | F1D, F2D, F3E (Variable Reactance Modulation) |
| Intermediate Frequency | 1st: 58.05 MHz, 2nd: 450 kHz |
| F7W Version | 4FSK (C4FM) |
| Sensitivity (AM) | 0.8μV TYP for 10dBSN (108-137 MHz) |
| Sensitivity (FM) | 0.2V for 12dB SINAD (137-150 MHz) |
| Frequency Range (174-400 MHz) | 174-400 MHz |
| Additional UHF Range | 430 MHz Amateur / UHF Band |
| Max Deviation | ±5 kHz |
| Spurious Emission | At least 60 dB |
| Sensitivity (FM) (174-22 MHz) | 0.3μV TYP for 12dB SINAD |
| Transmit Range | 144-148 MHz, 430-440 MHz |
| Microphone Impedance | 2kΩ |
| Channel Step Size | 5, 6.25, 10, 12.5, 15, 20, 25, 50, 100 kHz |
| Data Interface Impedance | 10 kΩ |
| Frequency Stability | ±2.5 ppm (-20°C to +60°C) |
| Transmit Types | F1D, F2D, F3E, F7W |
| Power Supply Voltage | Nominal 13.8 V DC, Grounded |
| Current Consumption (RX) | 0.5A |
| Current Consumption (TX) (50W) | 11A (144 MHz), 11A (430 MHz) |
| Power Output (Digital Mode) | 0.19μV TYP for BER 1% |
| Operating Temperature | -20°C to +60°C |
| Physical Dimensions | Main Radio: 139 x 42 x 132 mm (excluding fan) |
| Control Panel: 139 x 53 x 18 mm (excluding knobs) | |
| Selectivity | NFM, AM, 12 kHz, 130 kHz (-6dB to -60dB) |
| Audio Output (AF) | 3W (80Ω, THD 10%, 13.8V), Built-in Speaker, External Speaker |
| Weight (Approx.) | 1.1 kg (including main radio, control panel, control cables) |
| AF Output Impedance | [Not specified in your data; please clarify if needed] |
